Yamaha YFM660 Raptor ATV Polished Stainless Bolt Kit


SKU: 660RAPKitP Category:


Replace your ugly factory bolts and washers with this polished stainless steel Allen bolt kit!! This kit fits all Yamaha 660 Raptors. This is a huge bolt kit. It has 607 pieces of stainless steel and is the most detailed kit available anywhere for the Raptor.

We hand buff these bolts, but do not remove the lettering or all of the forging marks on the bolt heads. These are great looking fansteners and all but the very fussy will be more than happy with this kit!

The engine kits include every external bolt that goes on the engine!!

The kit is made from 304 or 316 fasteners.

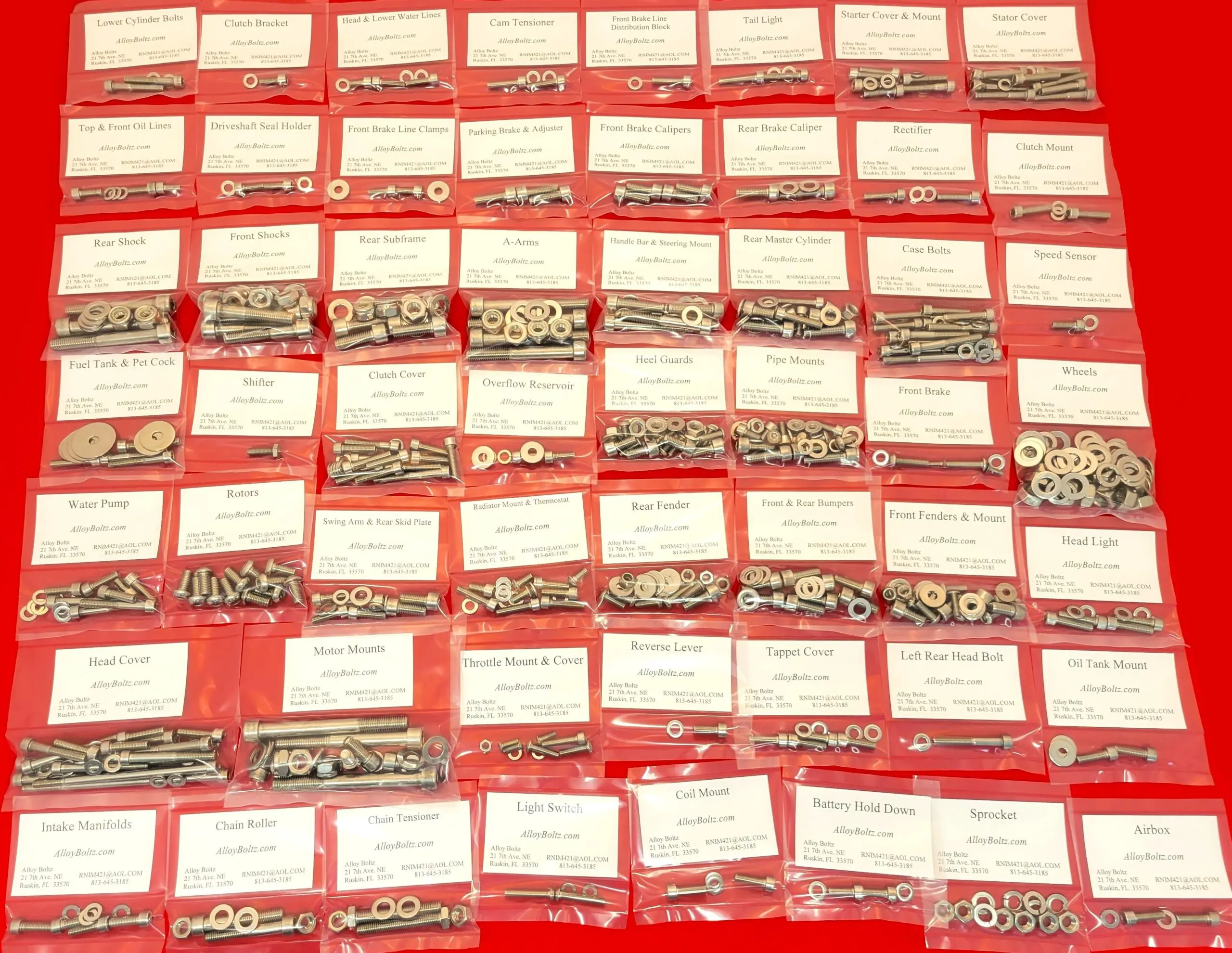

The picture shows all of the bolts and washers we put in the kit. It does not show our polished fansteners!

Stainless resists corrosion, and best of all, it does not RUST!!

For ease of installation, our Raptor kit includes 61 carefully packaged and labeled component kits for the following:
A-Arms- Rear Shock- Motor Mounts- Wheels- Front Shocks- Head Light- Rear Sub-Frame

Front Brake Lever- Swing Arm & Rear Skid Plate- Clutch Mount- Throttle Linkage- Chain Roller

Rear Fender- Throttle Mount & Cover-Front Bumper & Rear Bumpers- Front Fenders & Mount

Pipe Mounts & Exhaust- Handle Bar & Steering Mount- Chain Tensioner & Roller- Front Brake Caliper

Rear Sprocket- Airbox- Radiator Mount & Thermostat- Tail Light- Light Switch- Rear Master Cylinder

Rectifier- Battery Hold Down- Overflow Reservoir- Shifter- Fuel Tank & Pet Cock- Reverse Lever

Rear Brake Caliper- Rotors- Parking Brake & Adjuster- Oil Tank Mount- Front Brake Line Clamps

Heel Guards- Front Brake Line Distribution Block- Coil Mount- Clutch Cover- Water Pump- Stator Cover

Starter Cover & Mount- Case Bolts- Head Cover- Speed Sensor- Driveshaft Seal Holder

Top & Front Oil Lines- Cam Tensioner- Head & Lower Water Lines- Clutch Bracket- Lower Cylinder Bolts

Tappet Cover- Left Rear Head Bolt- Intake Manifolds

Although we have made this kit almost 100% complete, it does not include all of the fasteners on your bike. The main swing arm pivot bolt, foot peg, (4) short fine thread motor mount bolts, rear shock linkage, and upper A-Arm bolts are not included.
